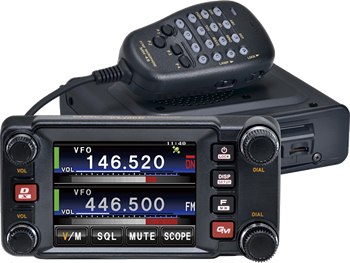

YAESU FTM-400DE - Radiotelefon przewoźny

C4FM FDMA / FM 144/430 MHz DUAL BAND TRANSCEIVER

The FTM-400DE is the first Mobile transceiver to be introduced that is fully compatible with Yaesu’s SystemFusion digital transmission system. The FTM-400DE has a large 3.5″ touch sentivity colour screen. An advanced menu system provides easy access to over 100 seperate menu settings.

The FTM-400DE operates in three Digital modes ( Voice and Data, Voice Full Rate and Data Full Rate) and in one Analog mode (NBFM) to suit your needs. This feature packed radio is our first Digital Mobile equipped with our new Automatic Mode Select (AMS) function that instantly detects the received signal mode. The AMS function enables stress-free operation and eliminates the need to manually switch between communication modes.

C4FM has an excellent communication quality with lower BER characteristics compared to other FDMA diigital modulation schemes. C4FM is the standard method for professional communication devices in FDMA, and is therefore considered to be the main stream digital communication mode in the future. Download our „Digital Communications Guide for Amateur Radio Operators” available on our web site that explains more about this efficient and reliable digital mode.
The three Digital and one Analogue modes are:

V/D Mode (Voice/Data simultaneous communication mode)
- The digital voice signal is transmitted in one half of the band width. Simultaneously the other half of the 12.5 kHz band width channel is used for error correction of the voice signal and other data. By incorporating powerful error correction technology developed for professional communication devices, effective error correction codes provide the advantage of fewer interruptions to conversations. The Clear Voice technology developed for the C4FM FDMA Digital mode provides the ideal balance of error correction and sound quality.
Voice FR mode (Voice Full Rate Mode)
- This mode uses the full 12.5 kHz bandwidth to transmit digital voice data. The increased amount of voice data permits high quality voice communication, providing superb sound quality for a “rag chew” with friends.
Data FR mode (High Speed Data Communication Mode)
- This high-speed data communication mode uses the full 12.5 kHz bandwidth for data communication. The transceiver automatically switches to Data FR mode when transmitting snapshot pictures, and can be used to transmit large quantities of data at high speed.
Analog FM mode
- Analog FM is effective when weak signal strength causes audio drop out in the digital mode, and enables communication up to the borderline of the noise level. Also the use of established Yaesu low power circuit designs provides greater efficiency than the digital modes. This is the typical FM mode used by most typical non-digital handhelds and VHF/UHF mobiles.

*General*
Frequency Range
A (Main) and B (Sub) Band Receiver:	108 – 137 MHz	(Air Band)
	137 – 174 MHz	(144MHz HAM Band)
	174 – 400 MHz	(GEN1)
	400 -480 MHz	(430MHz HAM)
	480 – 999.99 MHz	(GEN2) Cellular Blocked (USA models only)
Transmitter:	144 – 146 MHz	European Models
	144 – 148 MHz	US Models
	430 – 440 MHz	European Models
	430 – 450 MHz	US models
Channel Steps	5,6.25,8.33,10.0 KHz	(8.33 KHz only for Air Band)
	12.5KHz,15,20,25 KHz
	50, 100 KHz
Frequency Stability	± 2.5ppm	-4°F to +14°F ( -20°C to + 60°C)
Emission Types	F1D, F2D,F3E,F7W
Supply Voltage	13.8V	Negative Ground
Current Consumption	0.5A	Receiver
	11.0 Amps	50W Transmit 144MHz
	12.0 Amps	50W Transmit 430 MHz
Operating Temperature range	-4°F to +14°F ( -20°C to + 60°C)
Case Size mm (inches)	Radio Unit without FAN (WxHxD)	140x40x125mm (5.5″x1.6″x4.9″)
	Controller unit wothout Knobs	140x72x20mm (5.5″x2.8″x0.8″)
Weight Kg (LBS)	1.2Kg (2.64)	Radio Unit, Controller and Cable

*Transmitter*
RF Power Output	50W/ 20W / 5W
Modulation Type	F1D, F2D, F3E	Variable Reactance Modulation
	F7W	4level FSK ( C4FM)
Spurious Emissions	At least 60dB below

Receiver
Circuit Type	Double Conversion Superhet
Intermediate Frequencies
A Band	1st IF 47.25 MHz	2nd IF 450 KHz
B Band	1st IF 44.85 MHz	2nd IF 450 KHz
Sensitivity:	0.8μV Typical for 10dB SN	108 – 137 MHz AM
	0.2μV for 12dB SINAD	137 – 140 MHz FM
	0.2μV for 12dB SINAD	140 – 150 MHz FM
	0.19μV Typical for BER1%	140 – 150 MHz Digital
	0.25μV for 12dB SINAD	150 -174 MHz FM
	0.3μV Typical for 12dB SINAD	174 – 222 MHz FM
	0.25μv Typical for 12dB SINAD	222 – 300 MHz FM
	0.8μV Typical for 12dB SINAD	300 – 336 MHz AM
	0.25μV FOR 12dB SINAD	336 – 420 MHz FM
	0.2μV for 12dB SINAD	420 – 470 MHz FM
	0.19μV Typical for BER1%	420 -470 MHz Digital
	0.2μV for 12dB SINAD	470 -520 MHz FM
	0.4μV Typical for 12dB SINAD	800- 900 MHz FM
	0.8μV Typical for 12dB SINAD	900 – 999.9MHZ FM (USA Cellular Blocked)
Selectivity	NBFM, AM	12KHz / 30 KHz (-6dB / -60dB)
AF Output	3W	8Ω, THD 10% 13.8V – internal Speaker
	8W	4Ω, THD 10% 13.8V – Exteernal Speaker
Specifications subject to change	without prior notice	©Yaesu Musen Co. Ltd.
